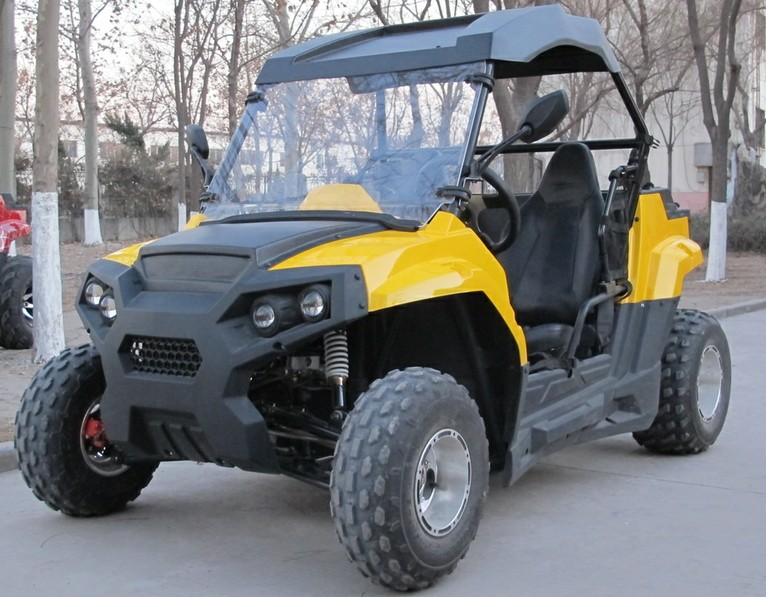

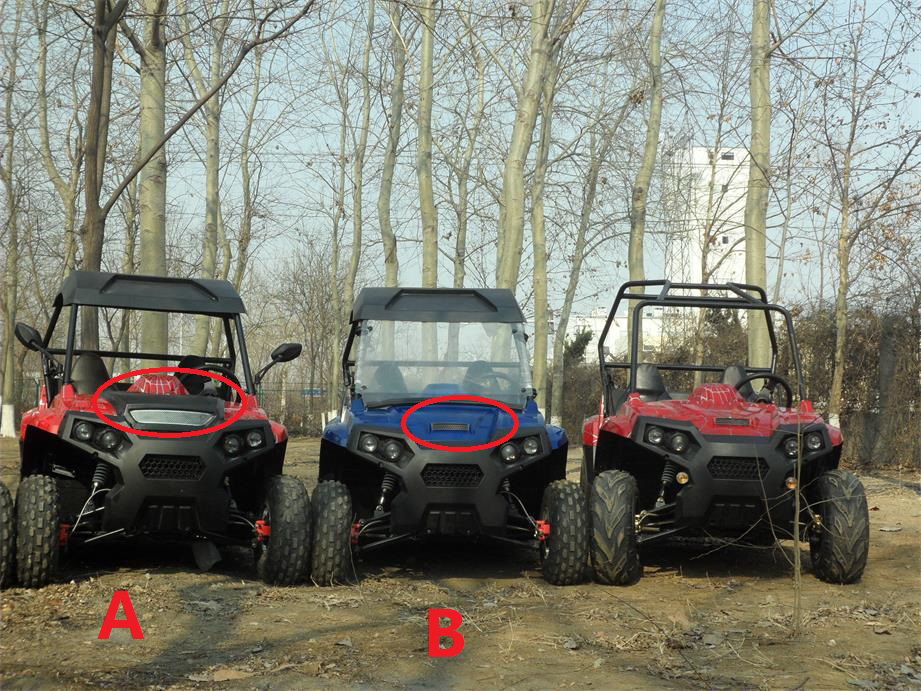

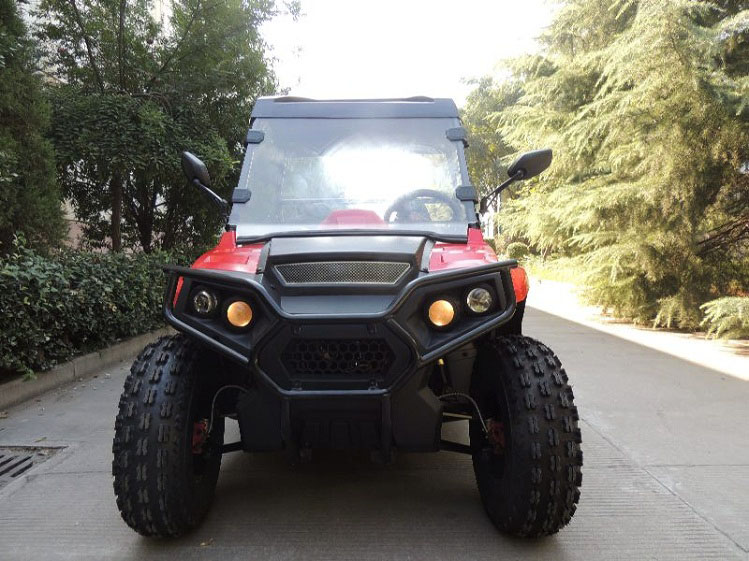

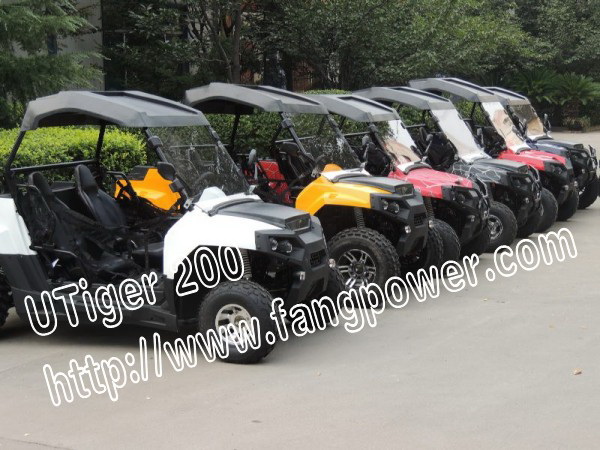

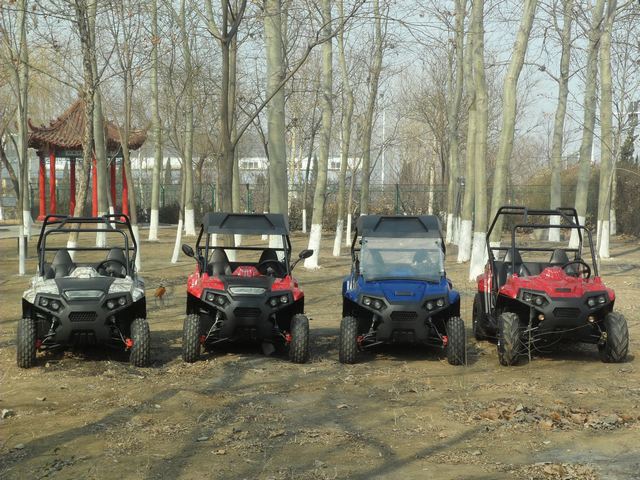

UTV ขยายกว้างกว่าเดิม+เครื่องยนต์มาตราฐานแรงกว่าเดิม 200CC ระบบเกียร์ออโต้ F/N/R พร้อมอ๊อฟชั่นให้เลือกล้อแม็กซ์+ยางใหญ่ +หลังคาไฟเบอร์+กระจกหน้า+ไฟ

ENGINE


Certification
EPA EEC approved


Engine type
4-stroke,Single-Cylinder, Air/Oil-cooled


Displacement
179cc


Horse Power
8.5kw(8000r/min) 11.5HP


Valve Configuration
OHV


Compression ratio
9.0:1


FUEL SYSTEM


Fuel Delivery System
Fuel Pump Carburetor


Choke System
Automatic


Fuel capacity
9.5L (2.1 Gallon)





DRIVETRAIN


Driveline Type
2X4


Final Drive
Chain-drive


Transmission
Constantly Variable Transmission


Gear Selection
Forward & Reverse Single Speed


ELECTRICAL SYSTEM


Forward Lights
Headlights-High & Low Beam


Rear Lights
Brake Lights & Left/Right Signal lights


Starting system
Electric start


Ignition system
C.D.I


SUSPENSION / BRAKES


Suspension Front
Double A-arm optional


Suspension Rear
Dual Shock Swing arm


Brakes Front
Front Dual Hydraulic Disk


Brakes Rear
Rear Single Axle Hydraulic Disk


TIRES


Front Tread
1020mm ( 40.2 in)


Rear Tread
965mm ( 38.0in)


Front & Rear tire size
19x7-8 / 20x10-9


MISC


Loading information
8 units/20″; 18units/40″; 26units/40HQ


Manufacturers Defect Warranty
6 Months


Top speed
65km/h


Dry weight
245kg ( 540 lbs.)


Gross weight


320kgs(704lbs)


Wheelbase
1650mm (65.0in)


Vehicle dimension (L×W×H)
2250x1220x1397mm ( 88.6x 48.0x55.0 in)


Packing size
2290x1300x815mm (90.2x51.2x32.1in)


Ground clearance
152mm (6in)


Safety
Driver & Passenger Seat belts/ Driver and Passenger safety net restraints.





Optional accessories










Accessories Name






Alloy Wheels
10000





Windshield
4500





Sport Lights
2000





Hard Roof
5500
